      >   PRODUCT   >   Power Relay

    JQX-59F

    Inquire Now

    ● 40A-80A Contact Change-over Capacity

    ● Installation and Use of Screw

    ● With Opening and Dust-proof Type



    PRODUCT DETAILS

    • Specifications
    • Technical Data

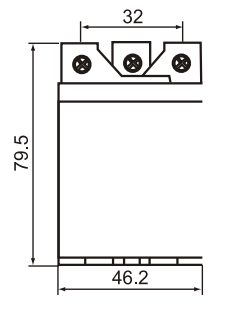

    • Dimensions
    • Wiring

    Contact Ratings

    Contact Ratings1A, 2A
    Contact Resistance50mΩ(1A 6VDC)
    Contact Capacity80A/30VDC 250VAC


    Specification

    Insulation Resistance500M Ω(500VDC)
    Dielectric StrengthBCC≥1500VAC 1min
    BOC≥1000VAC 1min
    Operate Time25ms/15ms


    CoilRated VoltageDC6-220V
    AC6-380V
    Rated PowerDC≤3.5W
    AC≤4.5VA
    Electrical Life105OPS
    Mechanical Life107OPS
    Operating Temperature-40℃~55℃
    Weight≤233g
    Mounting MethodsScrew Mounting
