    JQX-58F(JQX-60F)

    Inquire Now

    ● 40A Contact Operating Capacity

    ● Transparent Dust-proof Cover

    ● With Matched Socket




    PRODUCT DETAILS

    • Specifications
    • Technical Data

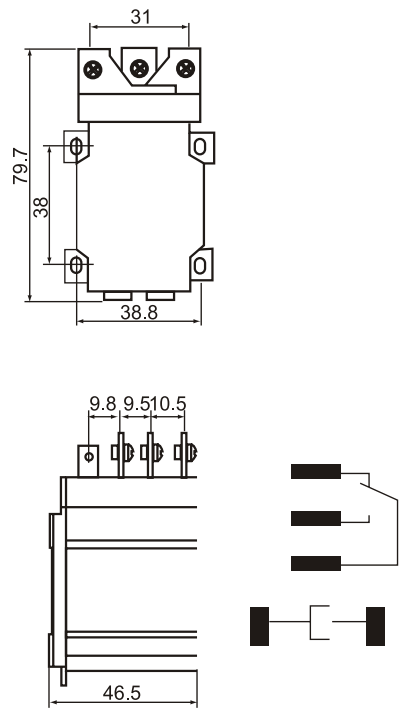

    • Dimensions
    • Wiring

    Contact Ratings

    Contact Ratings1Z, 1H, 1D
    Contact Resistance50mΩ(1A 6VDC)
    Contact Capacity60A/30VDC 250VAC


    Specification

    Insulation Resistance1000M Ω(500VDC)
    Dielectric StrengthBCC≥1500VAC 1min
    BOC≥1000VAC 1min

    Operate Time25ms/15ms


    CoilRated VoltageDC6-220V
    AC6-380V
    Rated PowerDC≤2W
    AC≤2.5VA
    Electrical Life105OPS
    Mechanical Life107OPS
    Operating Temperature-40℃~55℃
    Weight≤191g
    Mounting MethodsScrew Mounting
