    JQX-38F-2C(A)

    Inquire Now

    ● 40A Contact Operating Capacity

    ● Transparent Dust-proof Cover

    ● With Matched Socket



    PRODUCT DETAILS

    • Specifications
    • Technical Data

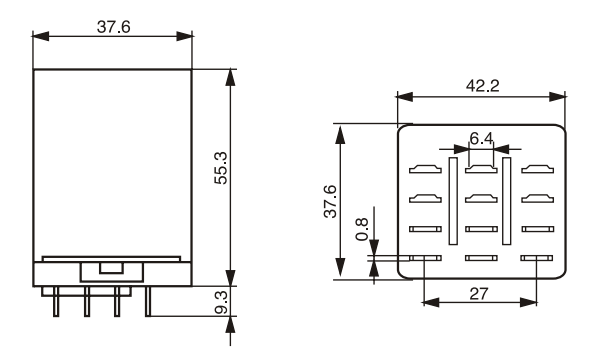

    • Dimensions
    • Wiring

    Contact Ratings

    Contact Ratings2Z, 2H, 2D
    Contact Resistance50mΩ(1A 6VDC)
    Contact Capacity40A/250VAC 30VAC


    Specification

    Insulation Resistance500M Ω(500VDC)
    Dielectric StrengthBCC≥1500VAC 1min
    BOC≥1500VAC 1min
    COC≥1500VAC 1min
    Operate Time20ms/15ms


    CoilRated VoltageDC6-220V
    AC6-380V
    Rated PowerDC≤2.5W
    AC≤4.5VA
    Electrical Life105OPS
    Mechanical Life107OPS
    Operating Temperature-40℃~70℃
    Weight≤105g
    Mounting MethodsOutlet
