    JQX-16F(T91)

    Inquire Now

    ● High Breaking Shock Conversion

    ● Dust-proof Cover and Sealed Plastic Type

    ● PCB Terminals




    PRODUCT DETAILS

    • Specifications
    • Technical Data

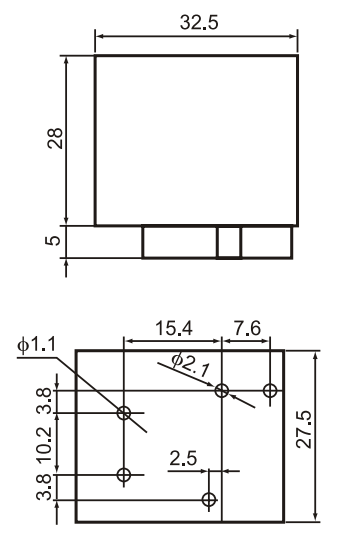

    • Dimensions
    • Wiring

    Contact Ratings

    Contact Ratings1Z, 1H, 1D
    Contact Resistance50mΩ(1A 6VDC)
    Contact Capacity30A/30VDC 250VAC


    Specification

    Insulation Resistance500M Ω(500VDC)
    Dielectric StrengthBCC 1500VAC 1min
    BOC 1000VAC 1min
    COC 1500VAC 1min
    Operate Time20ms/15ms


    CoilRated VoltageDC3-110V
    Rated PowerDC≤0.93W
    Electrical Life105OPS
    Mechanical Life107OPS
    Operating Temperature-40℃~85℃
    Weight≤31g
    Mounting MethodsPrinted-circuit Board
